Waterproofing modular buildings correctly is the difference between a wet area that lasts the life of the building and Australia’s single most common serious building defect. Waterproofing is the most common defect category in Australian residential buildings, and it is the compliance dimension where modular construction has one of its clearest structural advantages. In the NSW Building Commissioner and Strata Community Association research on serious defects in recently completed strata buildings (published September 2021), 39% of buildings surveyed had experienced at least one serious defect in common property, waterproofing was the most common defect category, and 23% of all Class 2 apartment buildings reported a waterproofing defect. Among buildings that had any defect at all, 63% included waterproofing. For builders and developers, a leaking shower or balcony is not a cosmetic problem. It drives rectification cost, insurance exposure, owners corporation disputes and reputational damage years after handover.
This guide sets out how wet-area waterproofing is regulated under the National Construction Code (NCC) and AS 3740, why site-built waterproofing fails so often, and how factory-controlled modular construction changes the risk profile. It is written for builders, head contractors, developers and specifiers evaluating modular for projects with bathrooms, ensuites, laundries, kitchens and other wet areas.
The regulatory framework: NCC, AS 3740 and Specification 26
Wet-area waterproofing sits inside the Health and Amenity section of the NCC, and the requirements differ by building class.
For Class 2 to Class 9 buildings (apartments, hotels and motels, retail and commercial, and assembly buildings such as childcare centres), the rules are in NCC 2022 Volume One Part F2, Wet areas and overflow protection. Objective F2O1 is to safeguard occupants from illness or injury and to protect the building from damage caused by water and moisture from wet areas. Performance Requirement F2P1 requires that overflow from bathrooms, laundries and the like be prevented from penetrating to a storey below where that could reach another sole-occupancy unit used for sleeping or a public space. Performance Requirement F2P2 requires that water penetration behind fittings and into concealed spaces be prevented so the building structure is not damaged. The Deemed-to-Satisfy provisions (F2D2 to F2D4) reference AS 3740 for wet-area construction, mandate floor wastes in certain multi-unit situations, and rely on Specification 26 to determine which building elements must be waterproof and which need only be water resistant.
For Class 1 houses and Class 10 associated structures, the requirements are in NCC 2022 Volume Two, Part 10.2, Wet areas. AS 3740, Waterproofing of domestic wet areas, is the referenced standard that a Deemed-to-Satisfy solution follows.
The current standard is AS 3740:2021. It is important to be precise about editions here, because the NCC and the standards it calls up are updated on a cycle, and the edition in force depends on the state. NCC 2022 is the baseline edition applying across 2026. NCC 2025 adoption is staggered: Victoria, the ACT and Western Australia commenced transition from 1 May 2026, New South Wales, Queensland, South Australia and Tasmania adopt from 1 May 2027, and the Northern Territory is not adopting NCC 2025. Builders should always confirm the edition and any state variations that apply on their specific project and at the relevant approval date.
What AS 3740:2021 actually requires
AS 3740:2021 tightened several details that are common failure points. The provisions that matter most on site include the following.
Shower walls must be waterproofed to a minimum height of either 1800 mm above the finished floor level, or 50 mm above the shower rose, whichever is higher. The shower floor must be fully waterproofed, and the wall-to-floor and wall-to-wall junctions must be sealed so that water cannot track behind the lining.
Floors that fall to a floor waste have a defined gradient window. The continuous fall to the waste must be a minimum of 1:80 and a maximum of 1:50. Too flat and water ponds; too steep and the finish becomes a trip and drainage problem. A significant change in the 2021 edition is that where the surface finish, such as tiles, is required to drain to a floor waste, the waterproof membrane below that finish must itself be graded to the waste, not just the tiles above it. This closes a long-standing gap where water passed through grout, sat on a flat membrane and never reached the drain.
There is one exemption worth understanding. A Class 1 house built under NCC Volume Two Part 10.2 can follow the Volume Two wet-area provisions that do not require a graded membrane to the drain, rather than AS 3740 in full. Class 2 apartments, hotels and other commercial and multi-unit buildings do not have that exemption and must meet the full standard. For a developer building apartments, student accommodation or a hotel, this is the stricter path.
Why site-built waterproofing fails
Waterproofing tops the defect list not because the rules are unclear, but because of the conditions in which the work is usually done. On a conventional site, waterproofing is a wet trade performed near the end of the program, often under time pressure, exposed to weather, dust and temperature swings that affect membrane cure. It is frequently the interface between several trades: the waterproofer, the tiler, the plumber setting the floor waste, and the carpenter framing the hob. When a membrane is applied to a damp substrate, cured too fast in the heat, punctured by a following trade, or terminated at the wrong height, the failure is invisible until the tiles are on and water is running. By then it is buried behind finishes, and rectification means demolition.
The root causes are consistent across the defect research: inadequate substrate preparation, insufficient membrane thickness or coverage, poor detailing at junctions and penetrations, and damage after application. Each of these is an environment and sequencing problem as much as a workmanship problem.
How factory-controlled modular construction changes the risk profile

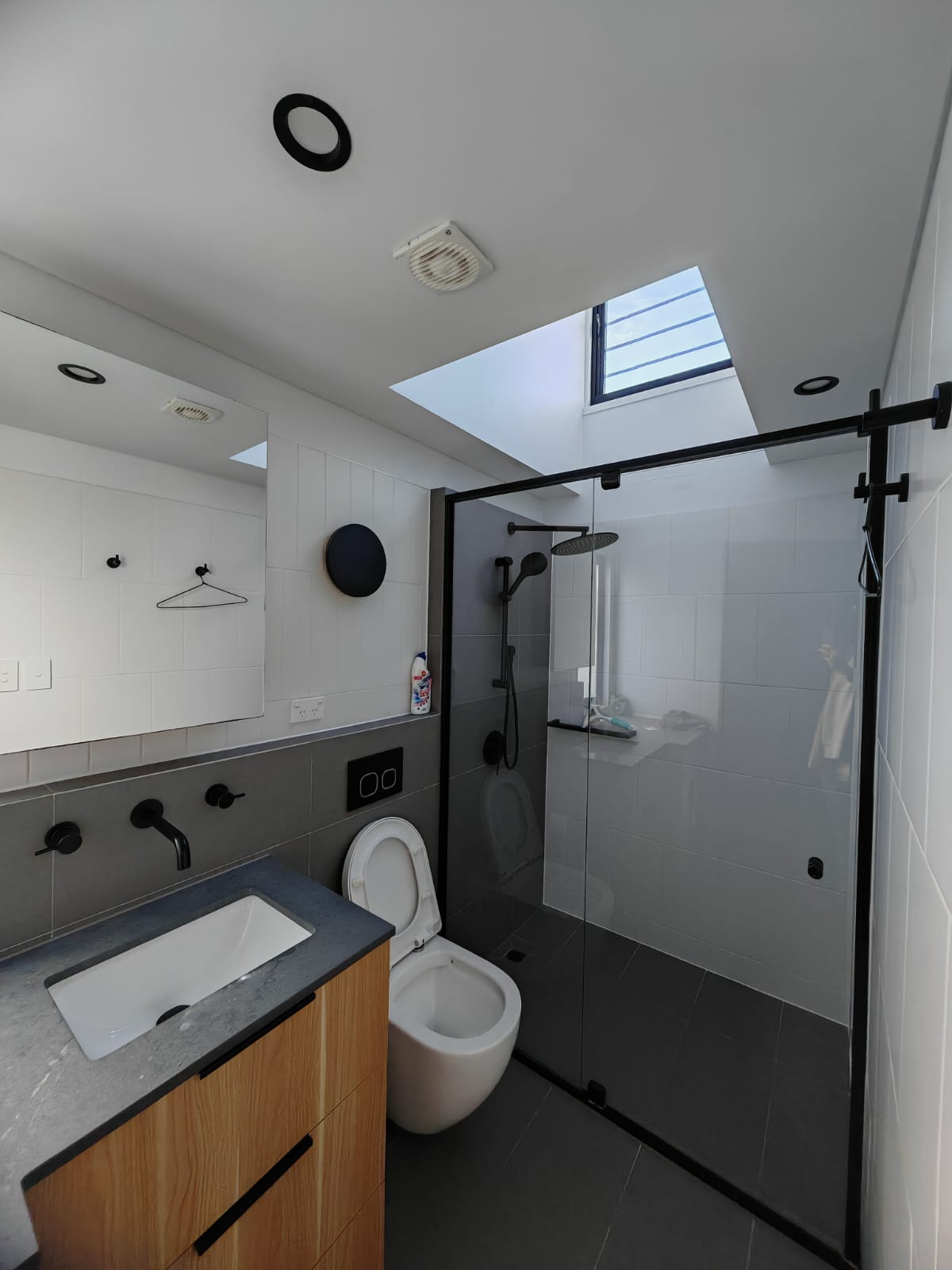

Modular construction moves the wet area off the weather-exposed site and into a controlled production environment. At EcoPrestige, units are built as turnkey, fully pre-cladded modules on a galvanised steel structural frame across a 50,000 sqm in-house production facility, and the bathroom and wet areas are completed and inspected inside the module before it is dispatched.
That shift addresses several of the root causes directly. Substrate preparation and membrane application happen indoors, out of rain and wind, with stable temperature and humidity for correct cure. Trade sequencing is controlled on a production line rather than negotiated between subcontractors on a busy site, which reduces the chance of a following trade puncturing a finished membrane. Because the same wet-area build is repeated across a run of modules, the detailing at junctions, hobs and floor wastes is a settled, inspected process rather than a one-off. And critically, each wet area can be checked and, where required, water-tested before the finishes and the module close up, while defects are still cheap to fix, rather than after handover when they are not.
EcoPrestige units are engineered to NCC Class 1a, 2, 3 and 9b, which are the classes where the wet-area rules above apply, from houses and apartments to hotels and childcare centres. The company operates three commercial models: modular supply only, supply plus EcoPrestige installation, and a design-and-build coordinator role under AS 4300. EcoPrestige supplies into a licensed head contractor scope and does not contract directly with end clients. Indicative pricing starts from A$2,200/m² for early learning centres, A$2,300/m² for apartments and A$3,300/m² for hotels, excluding GST, across the Orchid, Tulip and Acacia unit range. Modules are delivered roughly 30% faster than typical modular suppliers, and come with a 12-year structural warranty and a 12-month materials warranty, with an Occupancy Certificate provided.
What builders should verify when waterproofing modular buildings
Faster and factory-built does not remove the builder’s obligation to demonstrate compliance. Whatever the construction method, the head contractor and certifier still need evidence that the wet areas meet F2 or Part 10.2 and AS 3740. When you evaluate a modular supplier, ask how wet-area waterproofing is specified against AS 3740:2021, whether membranes are graded to the waste where finishes drain to it, what inspection or test record is produced for each module before dispatch, and what evidence of suitability accompanies the units so your certifier can rely on it. A supplier that can answer those questions in documents, not just words, is one that will not become your rectification problem in year three. Our evidence of suitability and NCC compliance guide explains what that documentation should contain.
Waterproofing rarely sits alone on a project. It intersects with the fire, acoustic, energy and access rules that govern the same rooms and the same building. For the companion compliance dimensions, see our guides to fire-rated modular construction, acoustic and sound insulation compliance, energy efficiency under NCC 2022 and accessible design and AS 1428.1. Wet areas are also central to the building types where EcoPrestige is most active, including modular apartment construction. For indicative rates by building type, see the modular construction cost guide, browse the EcoPrestige brochures, or contact the EcoPrestige team to discuss a specific project.
Frequently asked questions
Which standard governs wet-area waterproofing in Australia?
AS 3740:2021, Waterproofing of domestic wet areas, is the referenced Australian Standard. It is called up through NCC 2022 Volume One Part F2 for Class 2 to Class 9 buildings such as apartments, hotels and childcare centres, and through NCC 2022 Volume Two Part 10.2 for Class 1 houses. Specification 26 determines which building elements must be waterproof and which need only be water resistant. Always confirm the NCC edition and any state variation applying to your project, since NCC 2025 is being adopted on a staggered timetable.
How high must shower walls be waterproofed under AS 3740:2021?
Shower walls must be waterproofed to a minimum height of either 1800 mm above the finished floor level or 50 mm above the shower rose, whichever is higher. The shower floor must be fully waterproofed and the wall and floor junctions sealed so water cannot track behind the lining.
What floor fall is required to a floor waste?
Where a floor drains to a floor waste, the continuous fall must be a minimum of 1:80 and a maximum of 1:50. Under AS 3740:2021, where the tiled surface is required to drain to the waste, the waterproof membrane beneath the tiles must also be graded to the waste, not only the tiles above it.
Why is waterproofing better controlled in modular construction?
In modular construction the wet area is built and inspected inside the factory before the module is dispatched, rather than at the end of an open, weather-exposed site program. That gives stable temperature and humidity for correct membrane cure, controlled trade sequencing that reduces the risk of a following trade damaging a finished membrane, repeatable inspected detailing at junctions and floor wastes, and the ability to check each wet area while defects are still cheap to fix. EcoPrestige completes wet areas in a 50,000 sqm production facility on a galvanised steel frame.
Does modular construction remove the builder’s compliance obligation?
No. The head contractor and certifier must still demonstrate that wet areas meet NCC Part F2 or Part 10.2 and AS 3740. A credible modular supplier should provide waterproofing specifications, an inspection or test record for each module, and evidence of suitability that a certifier can rely on. EcoPrestige units are engineered to NCC Class 1a, 2, 3 and 9b and supply into a licensed head contractor scope rather than contracting directly.
